Monoblock fixed ball

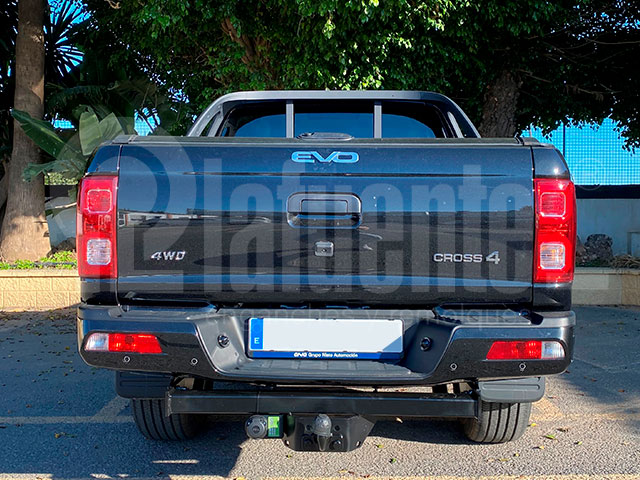

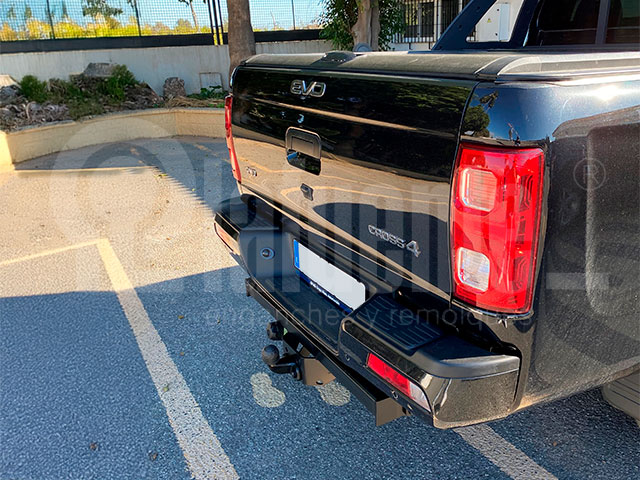

Mixed ball-bolt Monoblock fixed ball EVO CROSS 4 Pick-up 2023 - EE0692
It's the classic fixed ball for your EVO CROSS 4 , is mostly incorporated in commercial and off-road vehicles.
Technical Data
Manufacture year
from 06/2023 until 11/2024
Ball tope
Monoblock fixed ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
3500 Kg May vary depending on vehicle model
S Value (Imposed load)
185 Kg
D Value
15,85 kN
Brand: Lafuente ®
EAN: 8435380172542
Code: EE0692
Stock:
Yes
Add an Electrical Kit for EVO CROSS 4 Pick-up 2023
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR 13 poles KSK014 | 154 € | Add to the Towbar | ||
Mixed ball-bolt EVO CROSS 4 Pick-up 2023 - EE3692
It is a mixed 50 mm ball system that also serves for its EVO CROSS 4 as a bolt for trailers with eye-type towbar. It is normally used for ATVs and vans. Supplied with a ball cover.
Technical Data
Manufacture year
from 06/2023 until 11/2024
Ball tope
Mixed ball-bolt
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
3500 Kg May vary depending on vehicle model
S Value (Imposed load)
185 Kg
D Value
15,85 kN
Brand: Lafuente ®
EAN:
Code: EE3692
Stock:
Yes
Add an Electrical Kit for EVO CROSS 4 Pick-up 2023
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR 13 poles KSK014 | 154 € | Add to the Towbar | ||
Electric kits
| Universal Electronic Kits |
|---|
| DCR 7 poles KSK007E2 |
| DCR 7 poles KSK007 |
| DCR 13 poles KSK004E |
| DCR 13 poles KSK004 |
| DCR 13 poles KSK014 |
