Gooseneck fixed ball
Monoblock fixed ball
Mixed ball-bolt

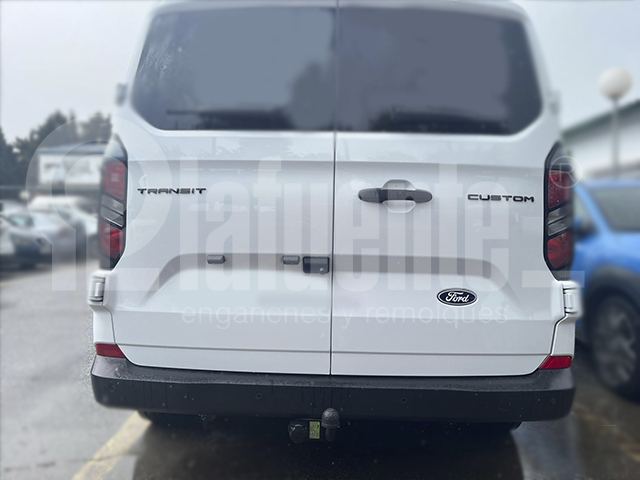

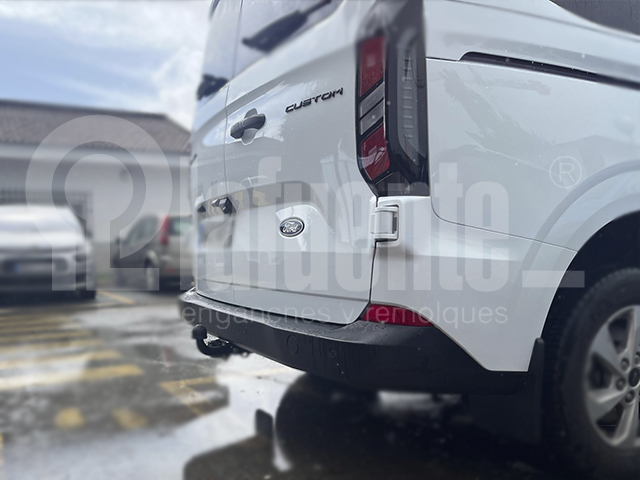

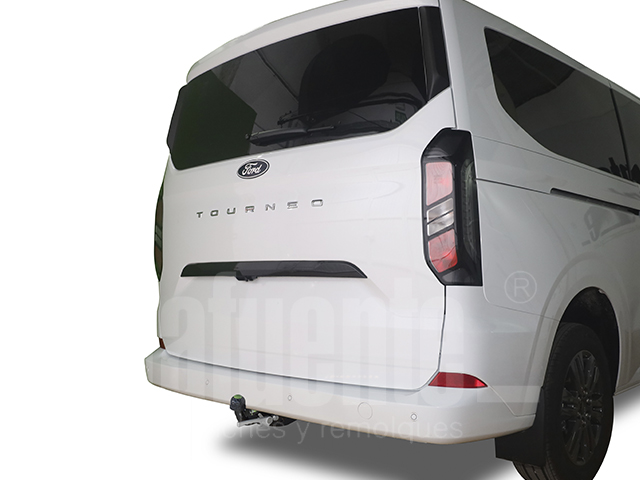

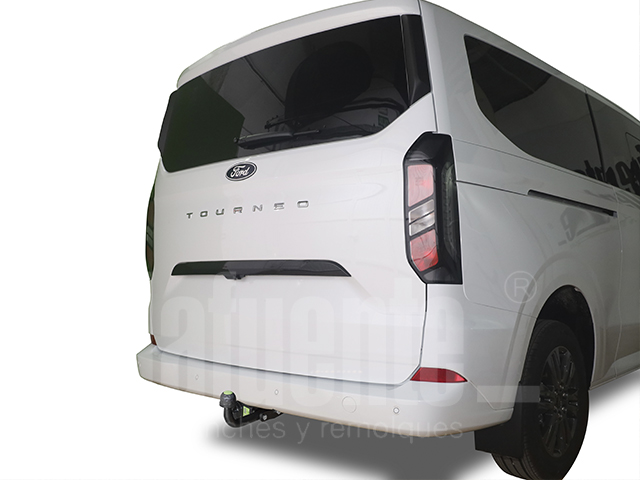

Removable horizontal ball Gooseneck fixed ball FORD Tourneo Custom Van 2025 - EE0682
This type of ball adapts to the aesthetics of your FORD Tourneo Custom .
Supplied with ball cover.
Technical Data
Manufacture year
from 09/2023 until 01/2025
Ball tope
Gooseneck fixed ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
2847 Kg May vary depending on vehicle model
S Value (Imposed load)
125 Kg
D Value
15,1 kN
Brand: Lafuente ®
EAN: 8435380171323
Code: EE0682
Stock:
Yes
Add an Electrical Kit for FORD Tourneo Custom Van 2025
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| DCR 13 poles KSK014 | 154 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 13 poles KD130259 | 168 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
Monoblock fixed ball FORD Tourneo Custom Van 2025 - EE0683
It's the classic fixed ball for your FORD Tourneo Custom , is mostly incorporated in commercial and off-road vehicles.
Technical Data
Manufacture year
from 09/2023 until 01/2025
Ball tope
Monoblock fixed ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
2847 Kg May vary depending on vehicle model
S Value (Imposed load)
125 Kg
D Value
15,1 kN
Brand: Lafuente ®
EAN: 8435380171545
Code: EE0683
Stock:
Yes
Add an Electrical Kit for FORD Tourneo Custom Van 2025
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| DCR 13 poles KSK014 | 154 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 13 poles KD130259 | 168 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
Mixed ball-bolt FORD Tourneo Custom Van 2025 - EE3683
It is a mixed 50 mm ball system that also serves for its FORD Tourneo Custom as a bolt for trailers with eye-type towbar. It is normally used for ATVs and vans. Supplied with a ball cover.
Technical Data
Manufacture year
from 09/2023 until 01/2025
Ball tope
Mixed ball-bolt
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
2847 Kg May vary depending on vehicle model
S Value (Imposed load)
125 Kg
D Value
15,1 kN
Brand: Lafuente ®
EAN: 8435380176595
Code: EE3683
Stock:
No
Add an Electrical Kit for FORD Tourneo Custom Van 2025
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| DCR 13 poles KSK014 | 154 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 13 poles KD130259 | 168 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
Removable horizontal ball FORD Tourneo Custom Van 2025 - EE1682
It is easily disassembled and assembled by means of a handle that drives an eccentric shaft. It is a system designed by Lafuente ® that meets demanding security requirements, and that offers excellent aesthetics and great utility in its FORD Tourneo Custom . It is supplied with a bag to store the ball, gloves, dust cap and ball cover.
Technical Data
Manufacture year
from 09/2023 until 01/2025
Ball tope
Removable horizontal ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
2847 Kg May vary depending on vehicle model
S Value (Imposed load)
125 Kg
D Value
15,1 kN
Brand: Lafuente ®
EAN: 8435380171330
Code: EE1682
Stock:
Yes
Add an Electrical Kit for FORD Tourneo Custom Van 2025
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| DCR 13 poles KSK014 | 154 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 13 poles KD130259 | 168 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
