Gooseneck fixed ball
Mixed ball-bolt

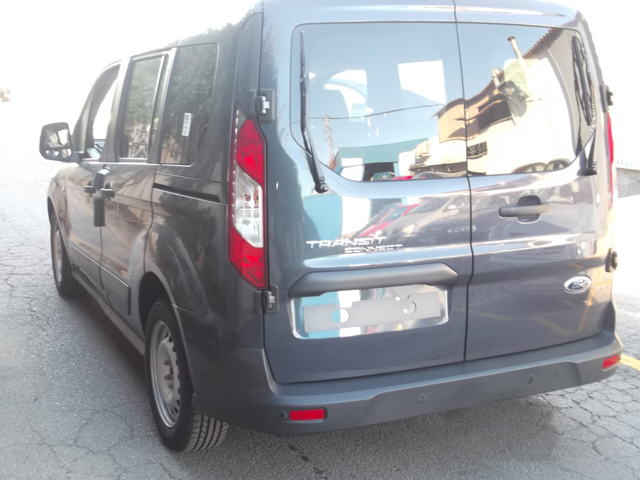

Removable horizontal ball Gooseneck fixed ball FORD Transit Grand Connect Van 2017 - EE0573
This type of ball adapts to the aesthetics of your FORD Transit Grand Connect .
Supplied with ball cover.
Technical Data
Manufacture year
from 01/2014 until 04/2018
Ball tope
Gooseneck fixed ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
1500 Kg May vary depending on vehicle model
S Value (Imposed load)
75 Kg
D Value
9,76 kN
Brand: Lafuente ®
EAN: 8435380145843
Code: EE0573
Stock:
Yes
Add an Electrical Kit for FORD Transit Grand Connect Van 2017
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 7 poles KD070001 | 190 € | Add to the Towbar | ||
| Specific electric kit 13 poles KD130001 | 204 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
Mixed ball-bolt FORD Transit Grand Connect Van 2017 - EE3447
It is a mixed 50 mm ball system that also serves for its FORD Transit Grand Connect as a bolt for trailers with eye-type towbar. It is normally used for ATVs and vans. Supplied with a ball cover.
Technical Data
Manufacture year
from 01/2014 until 04/2018
Ball tope
Mixed ball-bolt
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
1390 Kg May vary depending on vehicle model
S Value (Imposed load)
75 Kg
D Value
8,19 kN
Brand: Lafuente ®
EAN: 8435380122769
Code: EE3447
Stock:
Yes
Add an Electrical Kit for FORD Transit Grand Connect Van 2017
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 7 poles KD070001 | 190 € | Add to the Towbar | ||
| Specific electric kit 13 poles KD130001 | 204 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
Removable horizontal ball FORD Transit Grand Connect Van 2017 - EE1573
It is easily disassembled and assembled by means of a handle that drives an eccentric shaft. It is a system designed by Lafuente ® that meets demanding security requirements, and that offers excellent aesthetics and great utility in its FORD Transit Grand Connect . It is supplied with a bag to store the ball, gloves, dust cap and ball cover.
Technical Data
Manufacture year
from 01/2014 until 04/2018
Ball tope
Removable horizontal ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
1500 Kg May vary depending on vehicle model
S Value (Imposed load)
75 Kg
D Value
9,76 kN
Brand: Lafuente ®
EAN: 8435380145850
Code: EE1573
Stock:
Yes
Add an Electrical Kit for FORD Transit Grand Connect Van 2017
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 7 poles KD070001 | 190 € | Add to the Towbar | ||
| Specific electric kit 13 poles KD130001 | 204 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
