Gooseneck fixed ball
Removable horizontal ball

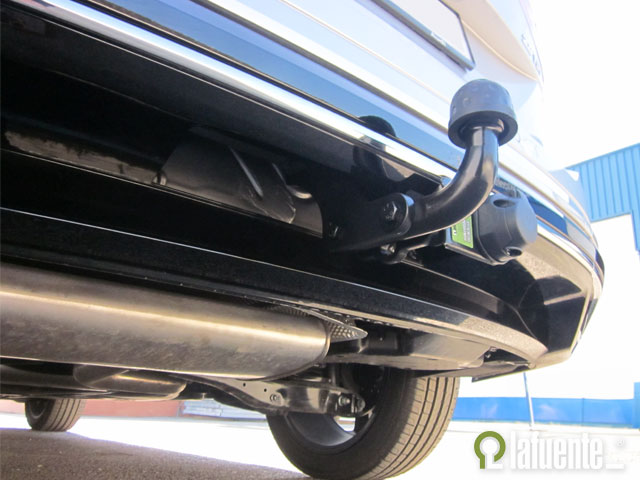

Removable vertical ball Gooseneck fixed ball VOLKSWAGEN Touran MPV 2017 - EE0482
This type of ball adapts to the aesthetics of your VOLKSWAGEN Touran .
Supplied with ball cover.
Technical Data
Manufacture year
from 09/2015 until 11/2024
Ball tope
Gooseneck fixed ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
2000 Kg May vary depending on vehicle model
S Value (Imposed load)
80 Kg
D Value
10,28 kN
Brand: Lafuente ®
EAN: 8435380125920
Code: EE0482
Stock:
Yes
Add an Electrical Kit for VOLKSWAGEN Touran MPV 2017
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| DCR 13 poles KSK015 | 175 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 7 poles KD070092 | 197 € | Add to the Towbar | ||
| Specific electric kit 13 poles KD130092 | 209 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
Removable horizontal ball VOLKSWAGEN Touran MPV 2017 - EE1482
It is easily disassembled and assembled by means of a handle that drives an eccentric shaft. It is a system designed by Lafuente ® that meets demanding security requirements, and that offers excellent aesthetics and great utility in its VOLKSWAGEN Touran . It is supplied with a bag to store the ball, gloves, dust cap and ball cover.
Technical Data
Manufacture year
from 09/2015 until 11/2024
Ball tope
Removable horizontal ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
2000 Kg May vary depending on vehicle model
S Value (Imposed load)
80 Kg
D Value
10,28 kN
Brand: Lafuente ®
EAN: 8435380125906
Code: EE1482
Stock:
Yes
Add an Electrical Kit for VOLKSWAGEN Touran MPV 2017
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| DCR 13 poles KSK015 | 175 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 7 poles KD070092 | 197 € | Add to the Towbar | ||
| Specific electric kit 13 poles KD130092 | 209 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
Removable vertical ball VOLKSWAGEN Touran MPV 2017 - EE4482
It disassembles vertically downwards in a very easy and intuitive way, so when it is not in use its VOLKSWAGEN Touran remains as if it had no towbar. It is supplied with a bag to store the ball, gloves, dust cap and ball cover. It also has an anti-theft key.
Technical Data
Manufacture year
from 09/2015 until 11/2024
Ball tope
Removable vertical ball
Regulations
CE
Bumper cut out
No
Assembly Time
Between 60' - 90'
MTM
2000 Kg May vary depending on vehicle model
S Value (Imposed load)
80 Kg
D Value
10,28 kN
Brand: Lafuente ®
EAN: 8435380125913
Code: EE4482
Stock:
Yes
Add an Electrical Kit for VOLKSWAGEN Touran MPV 2017
| Universal Electronic Kits They allow the assembly of the electrical installation of the towbar in practically any model of vehicle, avoid error messages on the vehicle information screen, faults due to overload in the electrical system and adapt the different lighting methods used in the rear lights of the vehicle. |
||||
|---|---|---|---|---|
| DCR 7 poles KSK007E2 | 87 € | Add to the Towbar | ||
| DCR 7 poles KSK007 | 97 € | Add to the Towbar | ||
| DCR 13 poles KSK004E | 110 € | Add to the Towbar | ||
| DCR+ 7 poles KSK008A | 117 € | Add to the Towbar | ||
| DCR 13 poles KSK004 | 120 € | Add to the Towbar | ||
| DCR+ 13 poles KSK009A | 135 € | Add to the Towbar | ||
| DCR 13 poles KSK015 | 175 € | Add to the Towbar | ||
| Specific Electronic Kit They reduce assembly time to a minimum. They include the original connectors, all the components necessary for installation and detailed assembly instructions with step-by-step pictograms. |
||||
|---|---|---|---|---|
| Specific electric kit 7 poles KD070092 | 197 € | Add to the Towbar | ||
| Specific electric kit 13 poles KD130092 | 209 € | Add to the Towbar | ||
| If you install a 13-pin Specific Kit and need to have direct current, it may be necessary to install an Auxiliary Kit of +15/+30 Amps. | ||||
| KIT AUX.+15/+30 - M01176 | 60 € | Add to the Towbar | ||
